FIBC/Jumbo Bag Making Machines

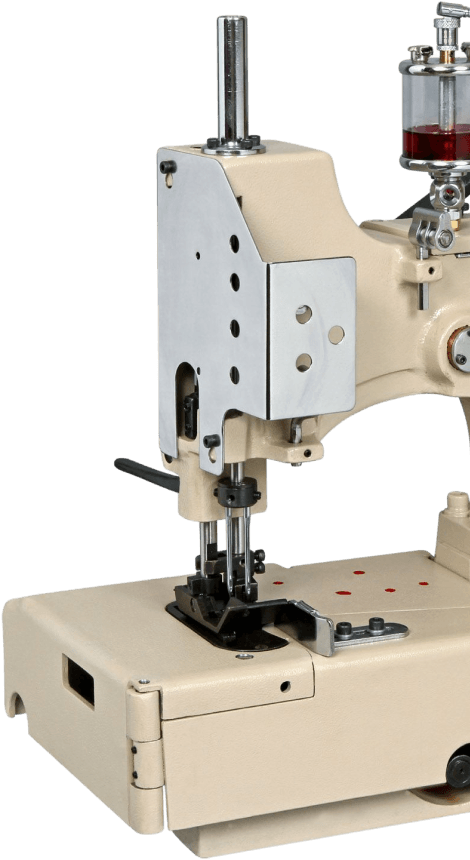

AS 606 DDR Technical Detail
Double Needle, Plain Feed, Four Thread, Double Locked Heavy Duty Chain Stitch Sewing Machine. Produces Two Parallel Seams In Distance 7.2 m.m.
Application
For seaming & hemming of light to heavy weight fabrics. Made from woven Polypropylene, Suitable for omega sewing on container bags (Filler Cord from top & below can be stitched for sealing needle punctures)
Stitching Sample
Technical Parameters
| Model | AS 606 DDR |
| Max Speed (R.P.M.) Approx | 1800 |
| Working Speed (R.P.M.) Approx | 1600 Depends On Sewing Material |
| Stitch Range (100 mm) | 6 – 13 *Adjustable |
| Distance between two needles | 10 mm |
| Sewing capacity (mm) | Up to 12 mm |
| Needle size | DR X 2 # 28 (Orange) |
| No. Of Needle | Two |
| No. Of thread | Four |
| Stitching thread type | PP Multi Filament, Fabricated Yarn |
| Lubrication | Semi Automatic |
| Motor | 1 H.P., 1 OR 3 Phase 1425-2850 RPM |
Threading
Through the Details
