AS 603 UDR-N Technical Detail
Single Needle, Plain Feed, Double Thread, Heavy Duty Chain Stitch Sewing Machine With Synchronized Upper Feed, Alternating Upper Feed Dog & Pressure Foot.
Application
For even matched side seams on heavy weigh fabrics. Applicable for all seams on container bags. Side seams, inserting top cover, attaching filling & discharging tubes with filler cord from the top & from below for sealing needle punctures.
Stitching Sample
Technical Parameters
| Model | AS 603 UDR-N |
| Max Speed (R.P.M.) Approx | 1800 |
| Working Speed (R.P.M.) Approx | 1600 Depends On Sewing Material |
| Stitch Range (100 mm) | 6 – 13 *Adjustable |
| Sewing capacity (mm) | Up to 15 mm |
| Needle size | UY9848GS 29/120 (Schmetz) |
| No. Of Needle | One |
| No. Of thread | Two |
| Stitching thread type | Multi Filament, Fabricated Yarn |
| Lubrication | Semi Automatic |
| Motor | 1 H.P., 1 OR 3 Phase 1425-2850 RPM |
Threading

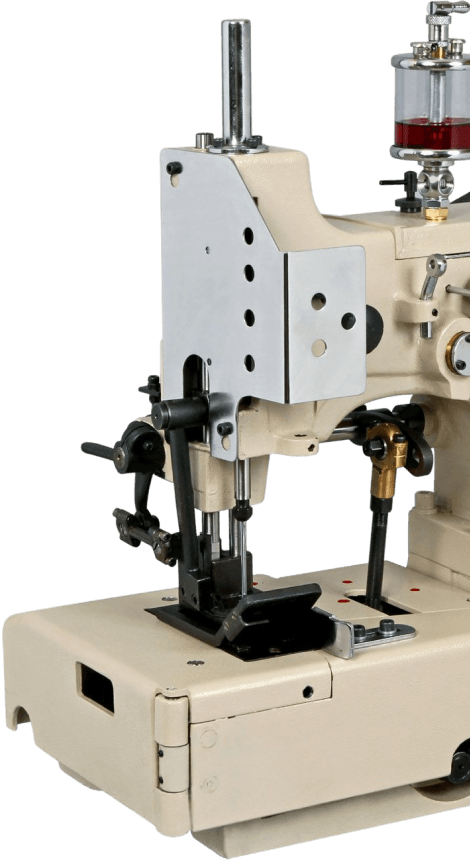

Through the Details
