Small Sack Bag Making Machines

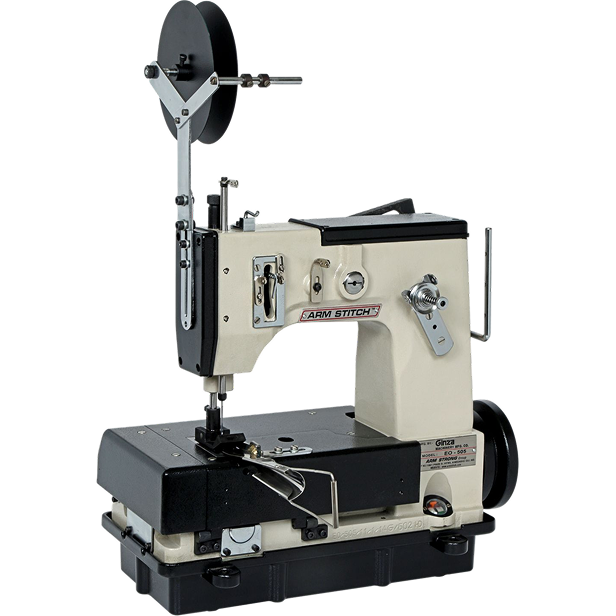

EO 505 Technical Detail
- Single needle
- Single thread
- Easy-open type
- High-speed
- Chain stitch
- Designed for producing PP sacks/BOPP bags
- With pull strip and cover tape attachment
Application
- Ideal for top-side sewing of easy-open type stitched bags for rice, wheat, flour, cattle feed, etc., including BOPP and heavy-weight sack bags

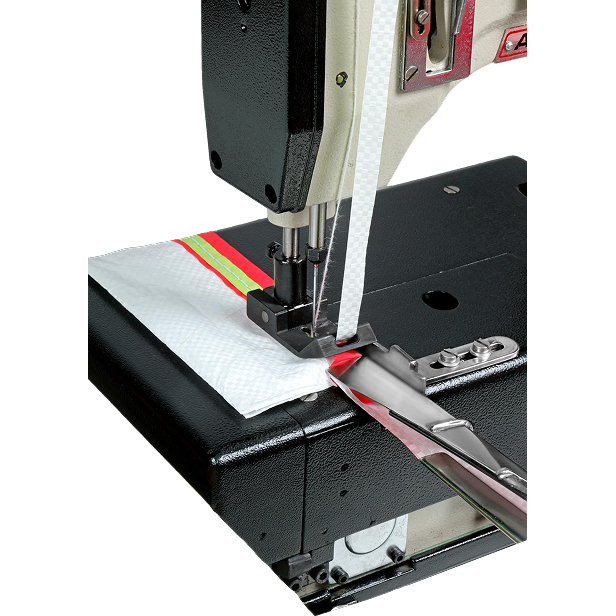

Stitching Sample
Industries and Applications
Agriculture & Food
- Flour
- Animal & pet care
- Food processing (retail)

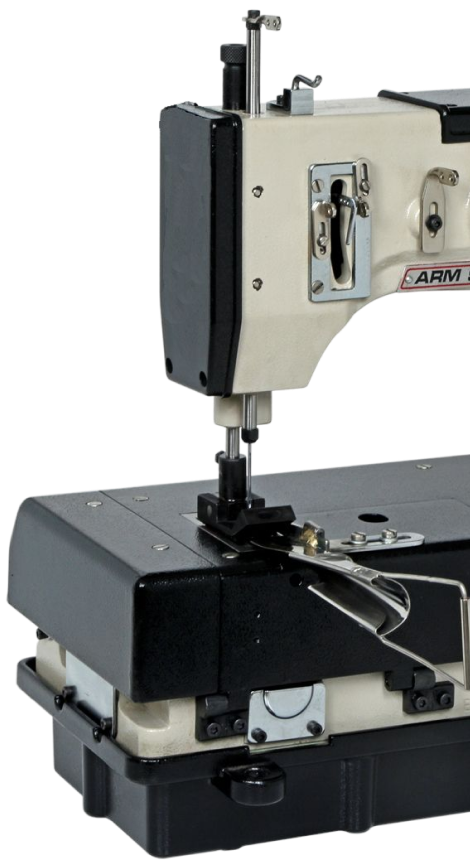

Technical Parameters
| Model | EO 505 |
| Max Speed (R.P.M.) Approx | 2000 RPM |
| Needle type | DDX2, Nm 230/26 |
| Number of needles | 1 |
| Stitching yarn type | Polyester |
| Number of yarns | 1 |
| Yarn denier range | 12/4 ply polyester thread |
| Needle distance | – |
| Stitch type | Federal 101, single-thread chain |
| Overseam width | – |
| Stitch length range (per 100 mm) | 11-16 (*adjustable) |
| Feeding system | Bottom single feed dog |
| Pressure system | Mechanical spring |
| Sewing capacity | Up to 7 mm thick |
| Lubrication | Fully automatic |
| Electro-pneumatic hot thread cutter | – |
| Needle cooling | – |
| Motor | 0.5 HP, single- or three-phase, 2850 RPM |
