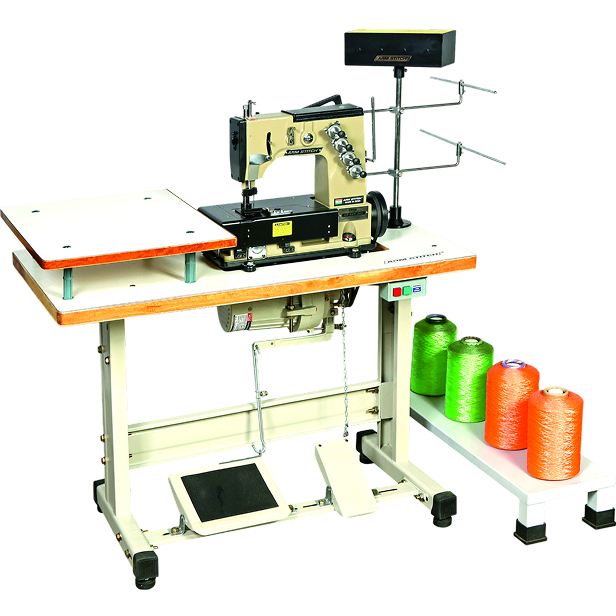

FIBC/Jumbo Bag Making Machines
AS 525 JHD Technical Detail
- 25 mm wide distance
- Double needle
- Four thread
- High-speed
- Chain stitch sewing machine
Application
- Recommend for sewing Velcro/Niwar on sacks/FIBCs
Stitching Sample
Industries and Applications
Packaging & Bags
- FIBC/Jumbo bags
- Woven sack bags
Agriculture & Food
- Sacks for food grains
- Animal feed
Logistics & Bulk
- Bulk bags

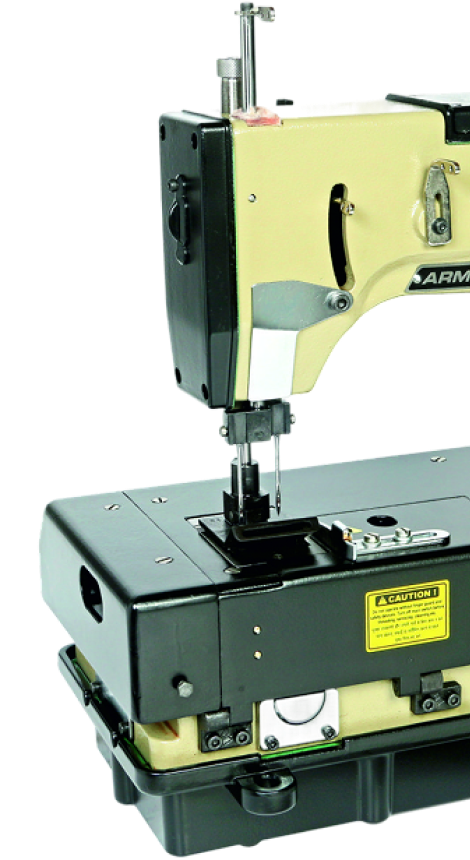

Technical Parameters
| Model | AS 525 JHD |
| Max Speed (R.P.M.) Approx | 2800 RPM |
| Needle type | DRX2 #26, Nm 230/26, (124×2) UY1973 |
| Number of needles | 2 |
| Stitching yarn type | PP multifilament, fabricated |
| Number of yarns | 4 |
| Yarn denier range | 1200 – 2500 |
| Needle distance | 25 mm |
| Stitch type | (401.401) SSa-2, double row chain |
| Overseam width | – |
| Stitch length range (per 100 mm) | 11-18 (*adjustable) |
| Feeding system | Bottom single feed dog |
| Pressure system | Mechanical spring |
| Sewing capacity | Up to 8 mm thick |
| Lubrication | Fully automatic |
| Electro-pneumatic hot thread cutter | – |
| Needle cooling | Optional |
| Motor | 1 HP, single- or three-phase, 2850 RPM |
