Net and Rope Overedging Machines

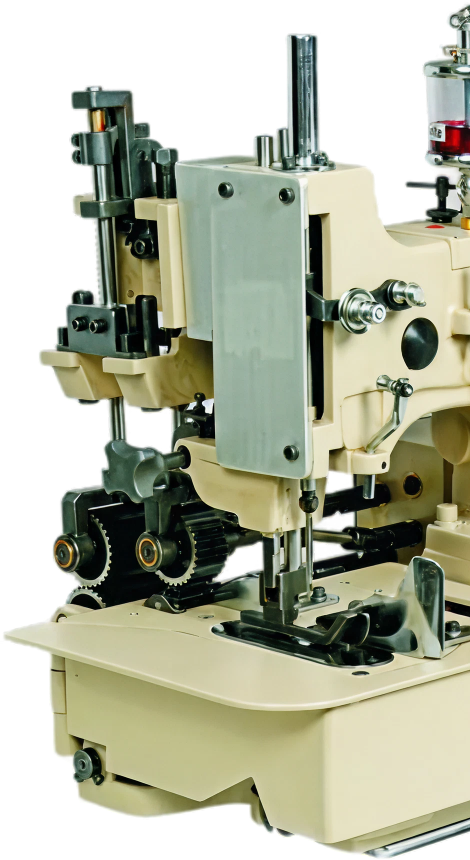

AS 602 UHR-NP Technical Detail
- Single needle
- Three thread
- Overedging
- With double traction puller mechanism
- Sews both knotted & knotless nets with rope
Application
- Suitable for attaching nets and ropes
- Sports nets
- Fishing nets
- Bird nets
- Safety nets
Stitching Sample
Industries and Applications
Nets & Ropes
- Sports nets
- Fishing nets
- Bird nets
- Safety nets
Technical Parameters
| Model | AS 602 UHR-NP |
| Max Speed (R.P.M.) Approx | 1400 RPM |
| Needle type | UY9853GA, Nm 430/34 |
| Number of needles | 1 |
| Stitching yarn type | 2mm twisted twine |
| Number of yarns | 3 |
| Yarn denier range | – |
| Needle distance | – |
| Stitch type | (504) three-thread overedge stitch |
| Overseam width | – |
| Stitch length range (per 100 mm) | 8-18 (*adjustable) |
| Puller | Double-traction puller mechanism |
| Pressure system | Mechanical |
| Sewing capacity | 4-14 mm Rope |
| Lubrication | Manual oiling |
| Electro-pneumatic hot thread cutter | – |
| Needle cooling | – |
| Motor | 1.5 HP, single- or three-phase, 2850 RPM |
