FIBC/Jumbo Bag Making Machines

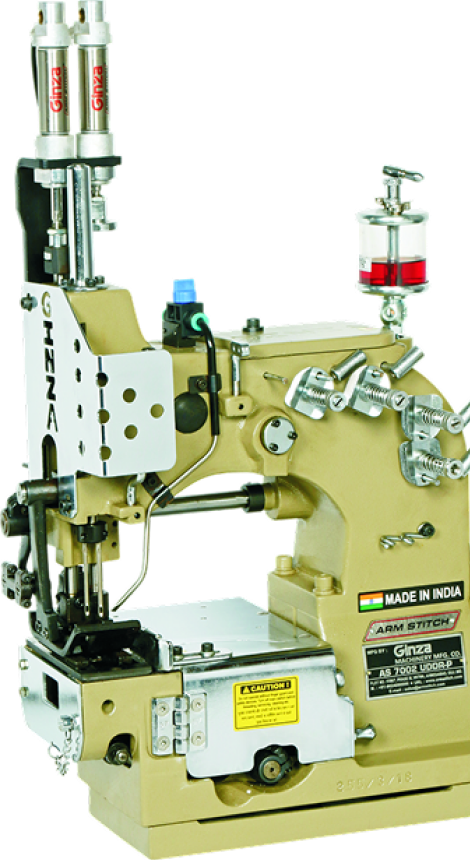

AS 7002 UDDR-P Technical Detail
- Double needle
- Four thread
- Double-locked, extra heavy-duty
- Feed dog on both upper and lower sides
- Bottom and top filler cord
- Pneumatic pressure foot
- Chain stitch
- Produces two parallel seams
Application
- Double-needle sewing for double and triple dust-proof stitching on container bags (180-400 GSM)
Stitching Sample
Industries and Applications
Packaging & Bags
- U Panel
- Circular
- Four Panel
- Baffle
- Q bags
- Omega bags
- Conical bottom
- Conductive/groundable
- Static dissipative
- Food contact compliance bags
- UN certified bags
- Ventilated agricultural bags
- Container inner covers
- Bale covers
Agriculture & Food
- Ventilated bags for perishable agricultural products
- Food contact compliance bags
Chemicals & Polymers
- UN certified bags for hazardous materials
- Static dissipative
- Conductive/groundable bags
Geotextiles & Civil
- Woven geotextiles
- Pond liners
- Canal liners
- Silt fences
- Sand bags
- Dewatering tubes
Logistics & Bulk
- Flexi tanks
- Dry bulk container liners
- Container inner covers
- Bale covers
Technical Parameters
| Model | AS 7002 UDDR-P |
| Max Speed (R.P.M.) Approx | 1600 RPM |
| Needle type | UY9848GS, Nm 300/29 |
| Number of needles | 2 |
| Stitching yarn type | PP multifilament, fabricated |
| Number of yarns | 4 |
| Yarn denier range | 2500 – 5000 |
| Needle distance | 7.2 mm |
| Stitch type | (401.401) SSa-2, double row chain |
| Overseam width | – |
| Stitch length range (per 100 mm) | 6-13 (*adjustable) |
| Feeding system | Feed dog on both upper and lower sides |
| Pressure system | Pneumatic |
| Sewing capacity | Up to 20 mm thick |
| Lubrication | Manual oiling |
| Electro-pneumatic hot thread cutter | Optional |
| Needle cooling | Optional |
| Motor | 1.5 HP, single- or three-phase, 2850 RPM |
