FIBC/Jumbo Bag Making Machines

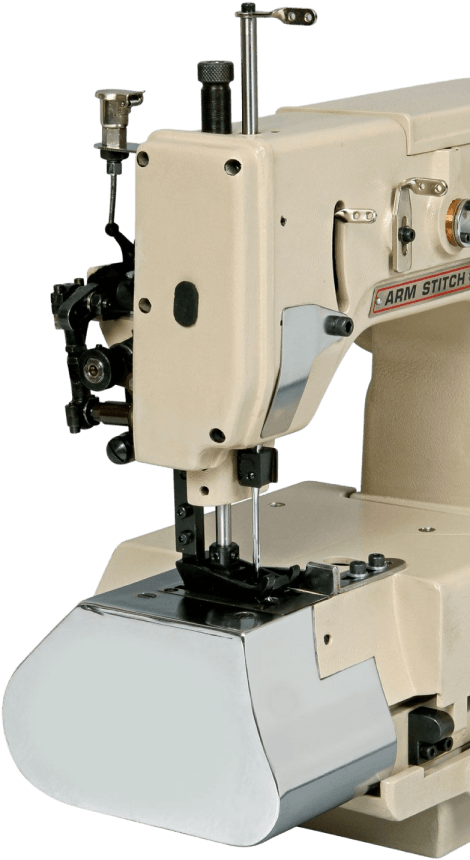

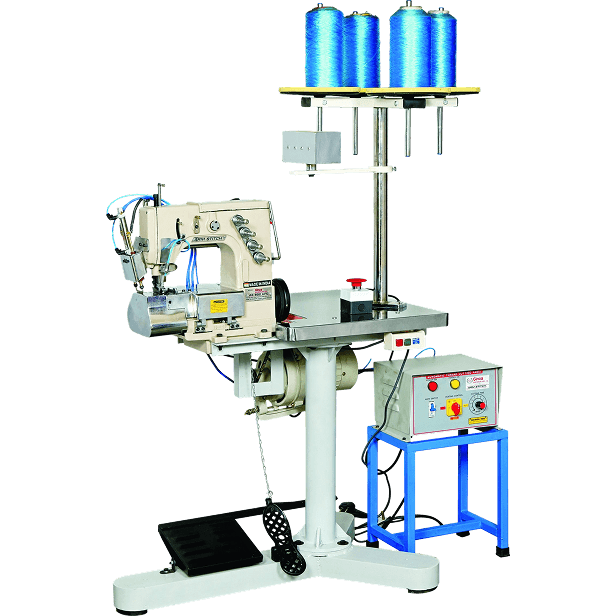

AS 802 UFC Technical Detail
- Double needle
- Four thread
- Circular bed
- Feed dog on both upper and lower sides
- Bottom and top filler cord
- High-speed
- Chain stitch
Application
- Suitable for attaching spouts/skirts on top and bottom panels, with or without filler cord (150-300 GSM)
Stitching Sample
Industries and Applications
Packaging & Bags
- U Panel
- Circular
- Four Panel
- Baffle
- Q bags
- Omega bags
- Conical bottom
- Conductive/groundable
- Static dissipative
- Food contact compliance bags
- UN certified bags
- Ventilated agricultural bags
- Container inner covers
- Bale covers
Agriculture & Food
- Ventilated bags for perishable agricultural products
- Food contact compliance bags
Chemicals & Polymers
- UN certified bags for hazardous materials
- Static dissipative
- Conductive/groundable bags
Logistics & Bulk
- Flexi tanks
- Dry bulk container liners
- Container inner covers
- Bale covers
Technical Parameters
| Model | AS 802 UFC | AS 802 VMC |
| Max Speed (R.P.M.) Approx | 2600 RPM | 2800 RPM |
| Needle type | DRX2 #26, Nm 230/26, (124×2) UY1973 | DRX2 #26, Nm 230/26, (124×2) UY1973 |
| Number of needles | 2 | 2 |
| Stitching yarn type | PP multifilament, fabricated | PP multifilament, fabricated |
| Number of yarns | 4 | 4 |
| Yarn denier range | 1200 – 2500 | 1200 – 2500 |
| Needle distance | 8 mm | 8 mm |
| Stitch type | (401.401) SSa-2, double row chain | (401.401) SSa-2, double row chain |
| Overseam width | – | – |
| Stitch length range (per 100 mm) | 11-16 (*adjustable) | 11-16 (*adjustable) |
| Feeding system | Feed dog on both upper and lower sides | Bottom single feed dog |
| Pressure system | Mechanical spring | Mechanical spring |
| Sewing capacity | Up to 11 mm thick | Up to 8 mm thick |
| Lubrication | Fully automatic | Fully automatic |
| Electro-pneumatic hot thread cutter | Optional | Optional |
| Needle cooling | Optional | Optional |
| Motor | 1 HP, single- or three-phase, 2850 RPM | 1 HP, single- or three-phase, 2850 RPM |
